| Stock ID: | PS-0105 |
Description

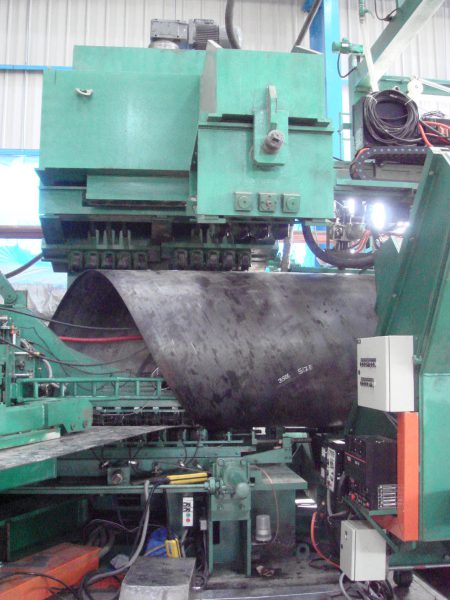

The Byard Spiral Weld Pipe Mill enables the customers Tubes & Pipes business to operate to best world practice in the manufacture and supply of large diameter, heavy wall submerged arc-welded pipe to an extensive cross section of industry. Due to the economical efficient two step-step production process, the spiral pipe is formed in the conventional mode, by means of the three roller bending process but is provisionally continuously tack welded by a high speed welding process (CO2 process) internally. Once the pipe has been formed and provisionally welded and run off down the Pay-Off Table, it is cut off and then transferred to the off-line welding stands, which welds the pipe internally and externally. This ensures that the welding parameters, for high grade steel pipe, are adhered to throughout the process. The pipe produced on this Off Line Spiral Weld Pipe Mill is in accordance with the API Specification 5L and for water pipes according to AWWA standards. The Spiral Weld Pipe Mill produces the most demanding of products including heavy wall high strength linepipe and associated mother pipe for bends, conductor pipe and carrier pipe for the energy industries, process pipe for refinery work, pressure pipe for water supply and sewage disposal and tubular piling for jetties and berthing dolphins. This mill is capable of producing pipe ranging from 609mm dia. (24”) min up to 2540mm dia. (100”) max and in wall thickness from 6.0mm (7/32”) up to 25.4mm (1”), in steel grades up to API 5L X80.
Byard SWPM
Features
| Machine Type | Spiral Welded Pipe Mill Facility |
| Brand | Byard |
| Model | CM2000-25 |
| Pipe Length (MAX) | 12 m |
| Pipe Diameter (MIN) | 609 mm |
| Pipe Diameter (MAX) | 2540 mm |
| Pipe Wall Thickness | 6 to 25.4 mm |
| Pipe Material Grade | up to API 5L X80 |
